Ramp management is the "application of control devices, such as traffic signals, signing, and gates to regulate the number of vehicles entering or leaving a freeway, in order to achieve operational objectives". Most ramp management strategies are employed to balance freeway demand and capacity, maintain optimum freeway operation, improve safety on the freeway or adjacent arterial street(s), or give special treatment to a specific class of vehicles. Ramp management strategies and the equipment/systems that support them are often implemented in conjunction with other freeway management programs to create operational efficiencies and to assist in the delivery of overall transportation management goals and objectives.
Ramp Management can offset congestion and safety problems that affect efficient and safe operation of traffic on ramps and or the facilities to which they connect. In doing so ramp management helps achieve greater return on transportation infrastructure investment and contributes to the realization of predetermined goals and objectives.
Ramp Management Strategies |
Need/Problem |
Location/Reason |
Ramp Metering |
Ramp Closure |
Special Use Treatments |
Ramp Terminal Treatments |
|---|---|---|---|---|---|
Safety |
Merge Point |
X |
X |
X |
|
Ramp Terminal |
X |
X |
|||
Mainline |
X |
X |
|||
Impacts |
Neighborhood |
X |
X |
X |
X |
Construction |
X |
X |
X |
X |
|
Special Events |
X |
X |
X |
X |
|
Congestion |
Mainline |
X |
X |
||
Ramps |
X |
X |
|||
Ramp Terminal |
X |
X |
|||
Arterial |
X |
X |
|||
Policy |
Transit |
X |
|||
HOV |
X |
||||
Freight |
X |
Ramp Management Strategies Mapped to Needs |
|
"Our region first installed ramp metering in our state's largest urban area in the early 1980s and we have stead¬ily expanded the system since then. Other, smaller cit¬ies in our state have seen the benefits and are planning ramp meter systems. Every evaluation of the system has shown reduced accidents, reduced delay and in¬creased volumes when metering was installed. No other traffic management strategy has shown the consistently high level of benefits in such a wide range of deploy¬ments from all parts of the country." - Pete Briglia. Puget Sound Regional Council and Chair of the TRB Freeway Operations Committee. |
There are four types of strategies that are used to better manage and control traffic on ramps:
|
"Ramp Management is one of the most powerful tools for managing freeway operations within an urban area. When asked which ITS element it would choose (if Mn/DOT was allowed only one) an official from Mn/DOT (Glenn Carlson-Twin Cities Metro District) said "ramp metering", without question. A recent "test" in the Twin Cities, where the ramp meters were turned off and then turned back on (after the public demanded it), seems to confirm that perception." - Joel Marcuson Chair, Freeway Management and Operations Committee. |
Ramp management goals, objectives (and the strategies to achieve them) should be consistent with regional transportation goals and objectives and must support the mission and vision of the operating agency. Ramp management goals, objectives and strategies should be defined at the regional level and should fit into the context of the broader transportation planning process including the freeway management program.
The selection and implementation of ramp management strategies must be based on needs. A set of needs must exist that can be addressed through ramp management approaches in order for ramp management to be effective and to justify the investment in these strategies.
To better manage and control traffic on freeway entrance and exit ramps, the Federal Highway Administration (FHWA) has developed the Ramp Management and Control Handbook providing guidance and recommended practices on managing and controlling traffic on ramps with freeway facilities. This comprehensive technical reference discusses the impacts that roadway improvement planning, designs, roadway and traffic monitoring, real-time operation, evaluation, and reporting have on the performance and management of traffic at freeway ramps. The use or application of these recommended practices will, in time, serve to enhance the use and effectiveness of various ramp management and control operational strategies and techniques.
This handbook consists of 11 Chapters grouped into four sections and an Introduction (i.e., Chapter 1). Section 1 (Chapters 2-4), titled Getting Started, presents all the processes and issues an agency should consider and/or complete before ramp management strategies are developed and implemented. Issues and activities relevant to traffic managers, which they may or may not be able to control, are discussed. Section 2 (Chapters 5-8), titled Decision Making, provides all the information that a traffic manager needs to develop, implement, operate and maintain ramp management strategies. Section 3, titled Visibility (Chapter 9), provides guidance on how to monitor, evaluate, and report the impacts associated with the implementation of selected ramp management strategies. The last section, titled Influences (Chapters 10 and 11), provides design considerations and case studies that may be used by practitioners seeking assistance in implementing ramp management strategies.
 |

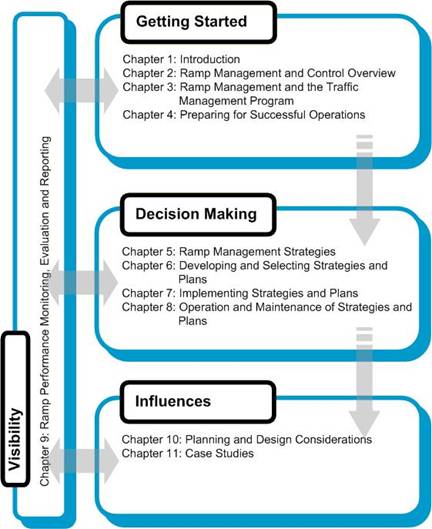

Handbook Organization by Main Section |
This handbook also describes in greater depth the issues and concepts specific to ramp management and control that were presented in Chapter 7 of the Freeway Management and Operations Handbook. The Freeway Management and Operations Handbook was released by FHWA in September 2003, and has since been updated to summarize the guidance presented in this handbook.
Location |
Benefit |
|---|---|
Portland, OR |
43% reduction in peak period collisions. |
Minneapolis, MN |
24% reduction in peak period collisions. |
Seattle, WA |
39% reduction in collision rate. |
Denver, CO |
50% reduction in rear-end and side-swipe collisions. |
Detroit, MI |
50% reduction in total collisions and 71% reduction in injury collisions. |
Long Island, NY |
15% reduction in collision rate. |
Summary of Ramp Metering Safety Benefits |
This handbook will benefit individuals that are involved in the planning, design, monitoring, operation, evaluation, and reporting of the performance and influence of managing traffic at freeway ramps. These individuals may be classified as either primary or secondary users.
|
Primary Users
|
Secondary Users
|
The Handbook, support documents, and associated outreach materials can be accessed through the TMC Pooled Fund Study maintained project webpage at http://tmcpfs.ops.fhwa.dot.gov/cfprojects/new_detail.cfm?id=58&new=2 or the FHWA Freeway Management Program website at http://www.ops.fhwa.dot.gov/freewaymgmt/pubs.htm#ramp_mgmt.
Ongoing TMC Pooled Fund Study projects are briefly described in the following paragraphs. A complete quarterly project progress report can be accessed on the TMC Pooled Fund Study Website: http://tmcpfs.ops.fhwa.dot.gov.
"Developing and Using Concept of Operations in Transportation Management Systems"
Purpose: Develop a document that describes the need for a concept of operations for a transportation management system and provides technical guidance and recommended practices for developing and using a concept of operations throughout the system's life cycle.
"Transportation Management Center Business Planning and Plans Handbook"
Purpose: Produce a handbook that provides guidance and best practices on how to develop a TMC business plan. The handbook will also outline business-planning models that were successfully employed by transportation agencies to ensure the long-term sustainability of TMCs and associated ITS applications.
 |
"TMC Performance Monitoring, Evaluation, and Reporting Handbook"
Purpose: Develop a handbook that explains the need for performance monitoring and provides guidance and recommended monitoring practices. The handbook will advise how to initiate, sustain, and use information generated from monitoring, evaluating, and reporting on TMC performance and describe roles, responsibilities, functions, and support services as they relate to traffic management.
"TMC Clearinghouse Development and Initiation"
Purpose: Establish a central, one-stop clearinghouse at a Web site that houses a comprehensive database of TMC-related resources. The TMC clearinghouse will facilitate the sharing of information among practitioners and the dissemination of innovative tools, processes, problem-solving efforts, and capacity-building efforts to assist TMC practitioners in performing their duties and achieving the goals of their TMCs.
"Regional, Statewide, and Multi-State TMC Concept of Operations and Requirements"
Purpose: Building off the existing Developing and Using Concept of Operations in Transportation Management Systems Handbook, this project will develop a document that will provide detailed guidance on how to develop and use concept of operations and system requirements as it applies to the life cycle of a regional, statewide, or multi-state TMC.
"Recovery and Redundancy of TMCs"
Purpose: Develop a technical document that will synthesize current practices and state of the practices, highlight technical issues, lessons learned, and recommended practices, and detail how to plan, develop and implement redundancy design and recover plans for TMCs and transportation management systems.
 |
"Procuring, Managing, and Evaluating the Performance of Contracted TMC Services"
Purpose: Develop a technical document that will provide guidance and recommended practice to TMC owners and managers in making decisions related to outsourcing portions, or in entirety, of their TMC or transportation management system operation to a private contractor or contractors.
"Integration of TMC and Law Enforcement: Needs Assessment"
Purpose: Assess the current practices and identify issues, needs, and challenges that all involving agencies are facing in integrating TMCs and law enforcement. The results of this effort will lead to identification of a list of topics and issues to be addressed and a series of next steps to be considered in a further study that is intended to develop a product to provide necessary guidance to address agencies' needs.
"TMC Pilot Workshop Development and Delivery"
Purpose: Promote the TMC Pooled Fund Study effort and increase awareness of the Study's products and tools to a broader audience base. The focus of this project is a pilot TMC workshop that focuses on current and future TMC Pooled Fund Study activities and other topics that are recommended.
"TMC Clearinghouse Support Services, Phase 2"
Purpose: Enhance and improve the support services for the TMC clearinghouse website that will be available online in Spring/Summer 2006. The study will also evaluate consumer feedback and recommendations for enhancing and improving the features and contents of the clearinghouse.
"Methodologies to Measure and Quantify TMC Benefits, Phase 1"
Purpose: Gain a better understanding of and to quantify benefits in traffic operations due to the implementation of TMCs and the systems, infrastructure, and functions associated with their operations. Phase 1 of the project will synthesize methodologies for measuring, quantifying, and evaluating costs and benefits of TMCs, as well as assess the feasibility of developing a software tool for quantifying TMC benefits.
 |
"Driver Use of Real-Time En-Route Travel Time Information"
Purpose: Assess impacts of en-route real-time travel time/delay/speed information on drivers; define the most effective way to provide en-route real-time travel time information; and develop preliminary guidance to practitioners for delivering en-route travel time information.
"Developing Travel Time Information"
Purpose: Synthesize the state of the practice, successful stories, and lessons learned as well as develop a technical document that provides guidance and recommended practices on the concepts, methods, techniques, and procedures for TMCs to collect, calculate, and predict travel time information.
"Requirements and Position Descriptions for TMC Support Staff"
Purpose: Build off information already compiled for operators in a previous effort and compile the needed information related to KSA's for other tasks and services required to support TMCs.
"Techniques for Managing Service Patrol Operations"
Purpose: Identify and synthesize current best practices, state of the practices, and models and innovative techniques for managing service patrol operations.
"Best Practices for Road Condition Reporting Systems"
Purpose: Synthesize current best practices and state of the practices in planning, design, and operation of road condition reporting systems as well as in integrating such systems with other road weather information/ management systems.
